Heatmap

MEAlytics contains a heatmap module designed to provide an intuitive overview of neural activity across the entire MEA plate. It can be accessed as follows:

Similar to the Inspect results section, first navigate the the View Results module. Here select both the outputfolder generated by the analysis, and the raw data file that was used. Then, navigate to the third tab named Heatmap and open a new window for the heatmap using the button that is presented.

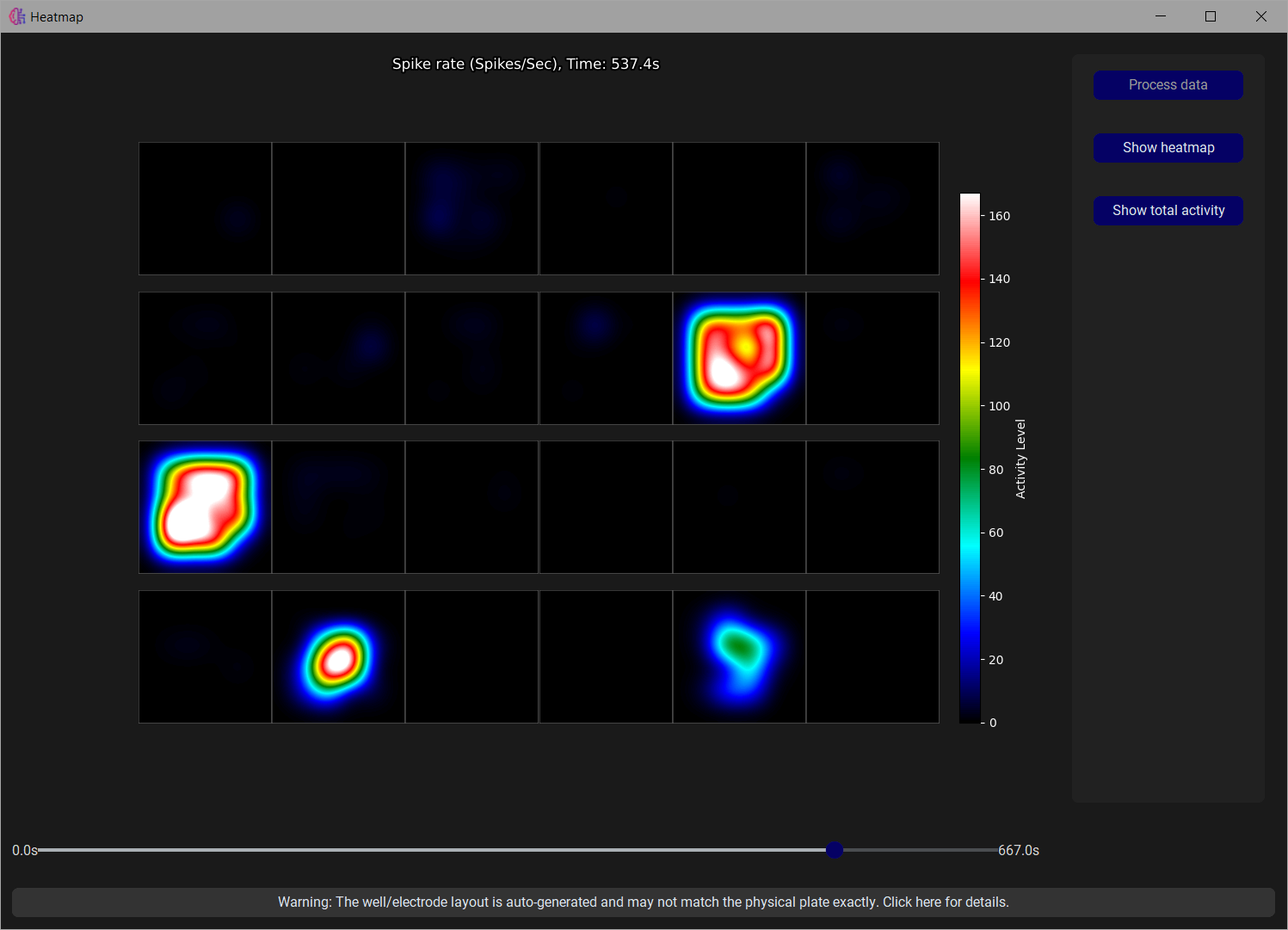

Before accessing the heatmap, the data needs to be processed, this can be initiated with the button Process data. After the data has been processed, the heatmap can be shown using Show heatmap.

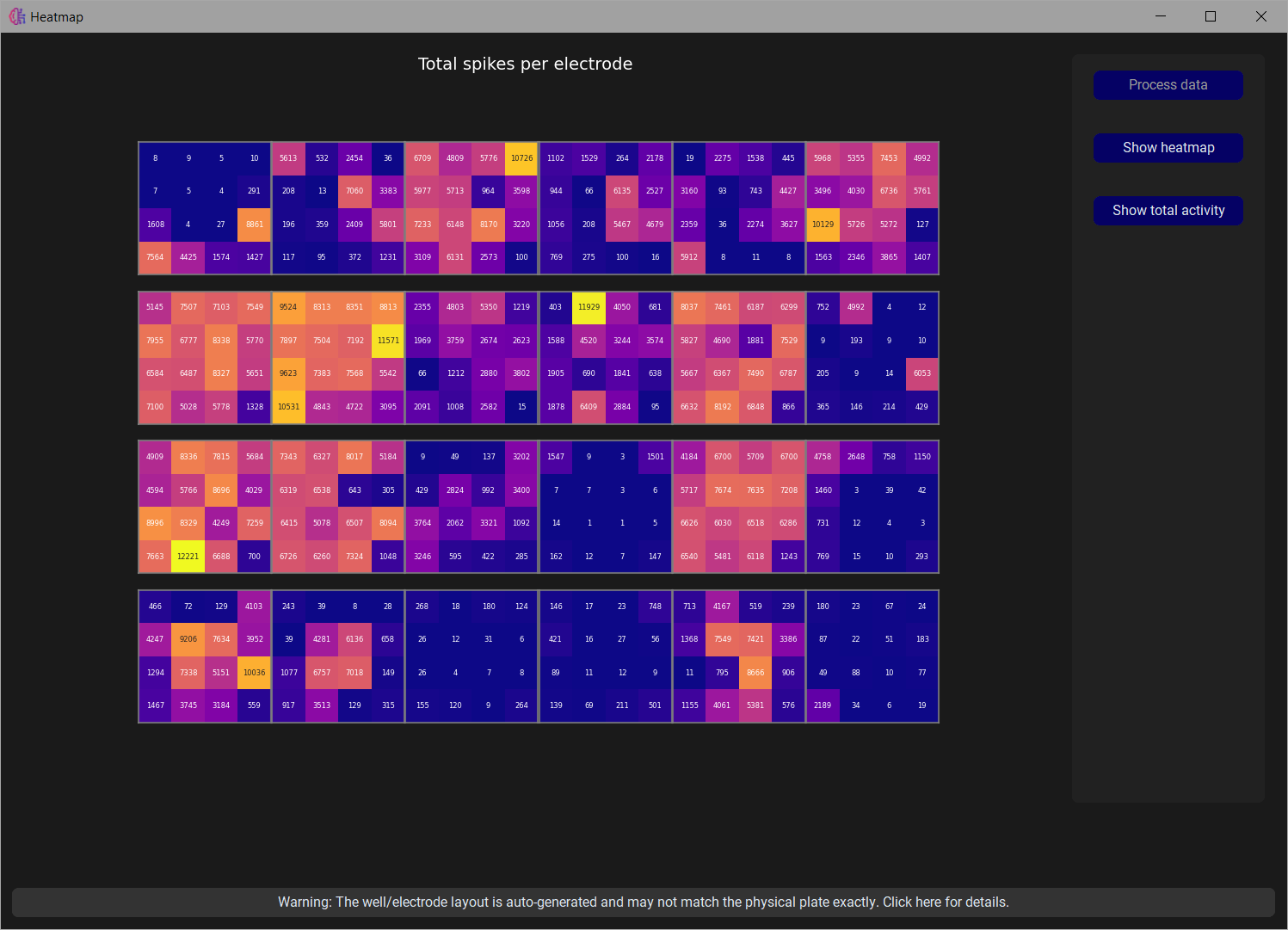

The total spike activity in the individual electrodes can be displayed using Show total activity.
